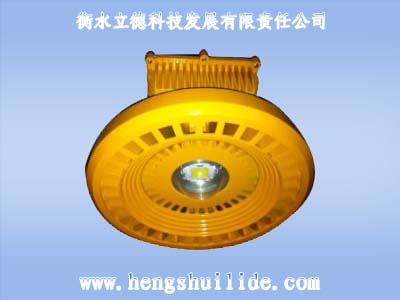

LED防爆平臺燈
LED platform lamp
適用范圍：
LED防爆平臺燈主要適用范圍：LED防爆平臺燈適用于鉆井平臺、海上石油平臺、煉油廠、化工廠、油站油庫、隧道、船舶等易燃易爆場所及造船等行業(yè)使用。
Scope of application
LED platform lamp main applicable range: LED platform lamp suitable for drilling platform, offshore oil platform, oil refineries, chemical plants, oil depot, tunnel, ships and other inflammable and explosive places and shipbuilding industries.
基本技術參數 ：Specification
|
型號規(guī)格
Model specification
|
額定電壓
Rated voltage（V）
|
功率
Power（W）
|
防爆標志
Explosion proof marks
|
防腐等級
Anticorrosion grade
|
防護等級
Protection grade
|
進線電纜外徑
The cable outer diameter
|
出線口螺紋
Outlet thread
|
|
LD-PT040/G
|
AC85-265V
|
40W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT060/G
|
AC85-265V
|
60W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|
|
LD-PT080/G
|
AC85-265V
|
80W
|
ExdII CT6
|
WF2
|
IP66
|
Φ8-Φ15
|
G3/4
|

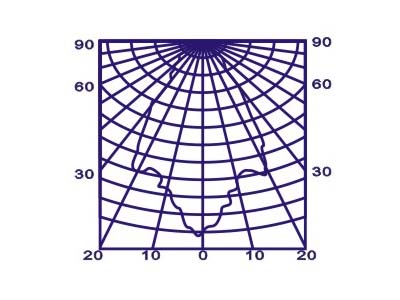

配光曲線：Light distribution curve:

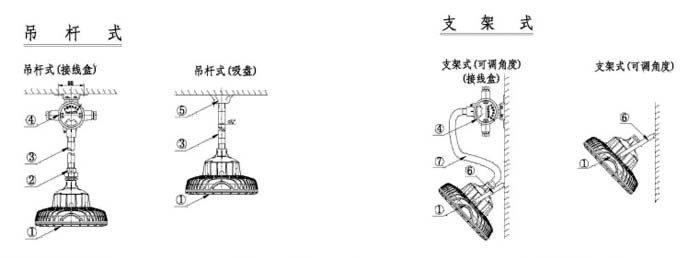

安裝方法：Installation methods:
