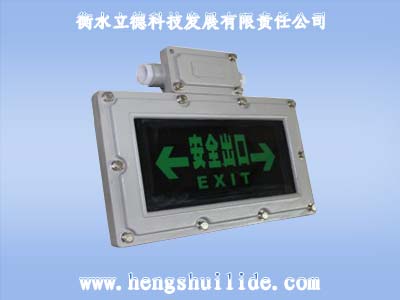

防爆安全標志
Explosion-proof marking lamp
適用范圍：
1.適用于1區，2區危險氣體場所。
2.適用于石油化工，船舶，海上鉆井，采油平臺等場所。
3.適用于ⅡA,ⅡB,ⅡC類爆炸性氣體環境
4.適用于安全出口指示，疏散標志之用
Spcope of application
1.Can be used in zone 1, zone 2 dangerous places.
2.Application in the petrochemical industry, shipbuilding, offshore drilling, oil production platform and other places.
3.Applicable to A. B, II, II class C explosive gas environment
4.Applicable to the security exit, evacuation with flag
基本技術參數 ：Specification
|
型號規格
Model specification
|
額定電壓
Rated voltage（V）
|
工作頻率
Frequency
|
防爆標志
Explosion proof marks
|
應急時間
|
引入電纜
Introduction of cable
|
|
LD-Y002
|
AC85-265V
|
50Hz
|
ExdII CT6
|
＞=120min
|
Φ8-Φ14
|
產品特色
1.外殼采用鋁合金壓鑄成型，表面高溫靜電噴塑，具有較好的防腐能力。
2.安裝方式常用壁式安裝，如需其他安裝請?zhí)貏e注明。
3.本燈具在正常供電下自動充電，斷電時自動切換到應急狀態，具有過充電保護、短路保護、過放保護等多種功能。
Product characteristics
1、shell is made of aluminum alloy die-casting molding, the surface temperature of electrostatic spray, has good corrosion resistance.
2、installation methods commonly used wall installation, if need other installation please specify.
3、lamps in the normal power supply automatic charging, power is automatically switched to the state of emergency, with over charge protection, short-circuit protection, over discharge protection functions.
